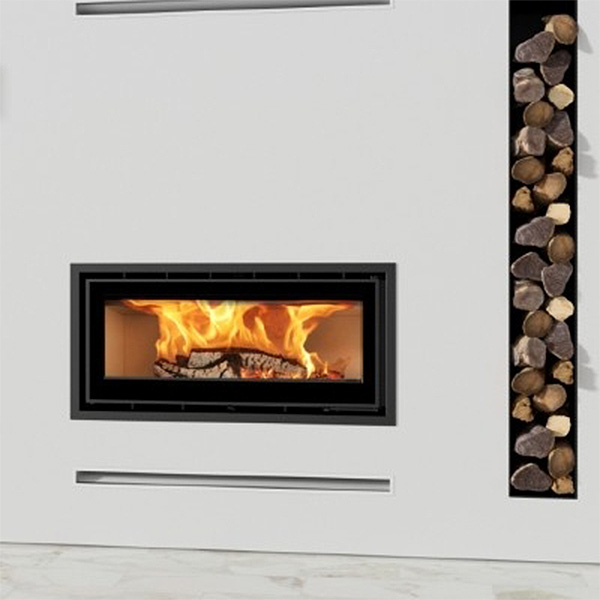

ADF Linea 100 Insert Wood Fireplace (Castworks)

The Linea 100 provides a substantial 17kW of heat output with an average of 64% efficiency.

Exhibiting all the traits that come with every ADF fire, these elegant fires combine a simplistic linear design with a 5mm steel firebox lined with high density firebricks. This automatically insulates the combustion chamber to allow for a superior heat reflection.

Features

  • Heat output – 17.0kW average peak
  • Efficiency – 70% peak (average 64%)
  • Emissions – 1.2 grams/kg
  • Constructed using high-strength 5mm quality black steel
  • Automatic flue damper system significantly reduces smoke ingress to the room on re-fuelling
  • High density vermiculite lining system insulates the combustion chamber, providing better heat reflection
  • Superior air wash system keeps the glass clean for unparalleled fire viewing
  • Single air control for ease of operation
  • Optional accessories – Heat shield
  • Warranty: Limited 5 years manufacturers

All prices include GST

Dimensions 465 × 1012 × 450 mm
Weight 175 kg

Category: Tags: , , ,

Description

Linea 100 is a result of ADF’s technical expertise and advancement in the metalworking industry. The innovation for the Linea 100 comes from their 43 years of experience constructing steel products to combine both the latest technology with a quality and user-friendly design.

Acquiring an ADF wood burning fireplace isn’t simply insuring a heating solution for your home; it is comfort, dependability, well-being and a work of art.

Coupled with a sleek European design and manufacture, ADF brings the next level in quality and functionality with the launch of the Linea 100 B wood-burning fire.

Externally the Linea 100 B has a minimalistic, timeless shape.  The spectacular large soot-free glass door ensures a beautiful and uninterrupted view of the flames and is easy to open with its removable handle.  The clean lines of the firebox are constructed using high-strength 5mm quality steel, and is balanced on a contemporary pedestal base.

These fires aren’t only eye-catching, they operate beautifully.  Internally a unique automatic flue damper significantly reduces smoke ingress to the room on re-fuelling, and a high-density vermiculite lining system insulates the combustion chamber providing better heat reflection.  In addition the simplicity in design of the air wash and primary air system belies how well these fires function.

Specifications

ADF Linea 100 Insert
Approx. firebox size 1012mm (w) x 465 mm (h)
Heating capacity up to 250 m2
